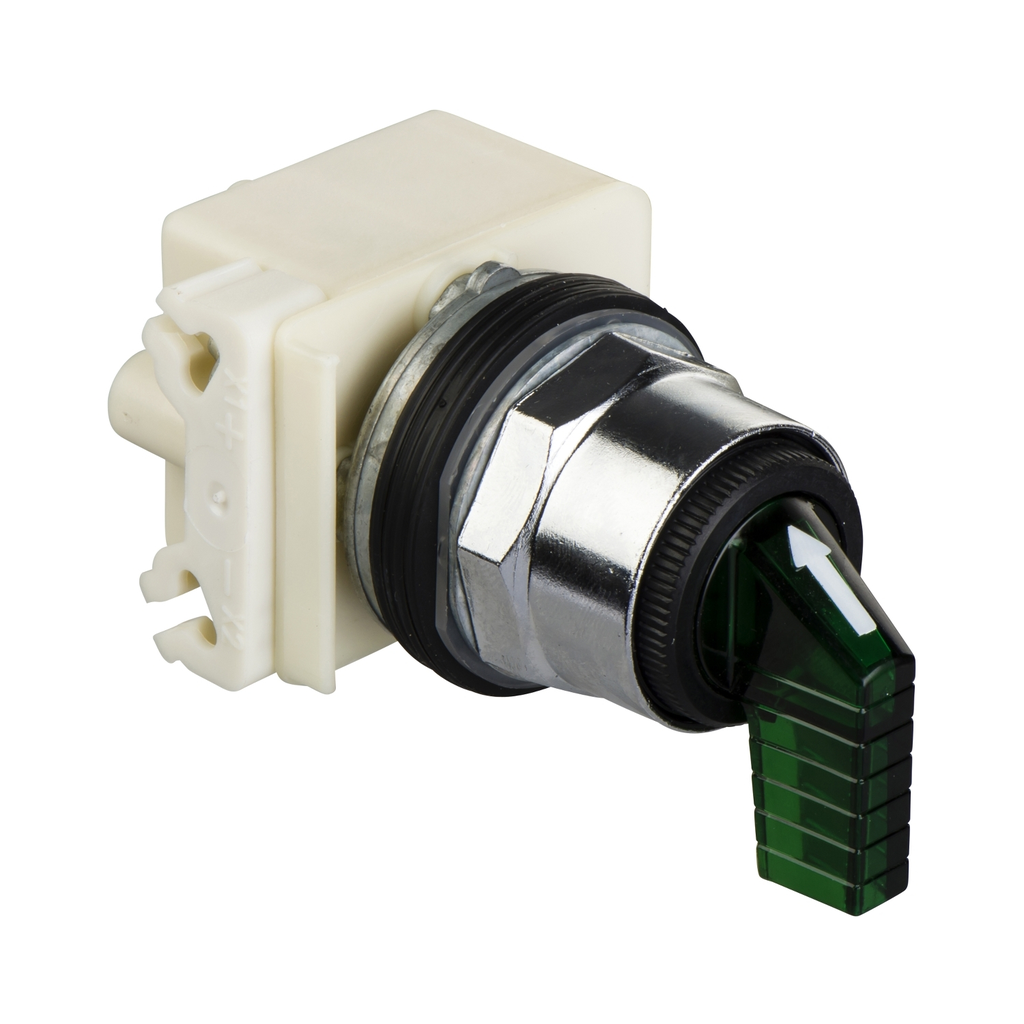

Illuminated selector switch head, Harmony 9001K, metal, long handle, green, 30mm, 3 positions, spring return both sides to center, LED green, 24-28V

SELECTOR SWITCH OPERATOR 30MM

SQD9001K53J35LGFG 9001K53J35LGFG 785901750277
227.76 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated selector switch head, Harmony 9001K, metal, long handle, green, 30mm, 3 positions, spring return both sides to center, LED green, 24-28V-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Light Source: LED
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated green selector switch with long handle has 3 positions, operates with spring return from left and right to center position. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and is supplied with a C cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular illuminated green selector switch with long handle has 3 positions, operates with spring return from left and right to center position. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and is supplied with a C cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • US Rated Supply Voltage
    • 24 V AC/DC
  • Type Of Operator
    • to centre spring return
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Customizable
    • no
    • 1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • green long handle
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • Product Compatibility
    • 9001KA1 side 1 or 2
  • Physical Attributes
    • Light Block Color : green
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-20
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cam Profile : 3
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Light Block Supply : direct
    • Light Source : LED
    • Mounting Diameter : 30 mm
    • Operator Position Information : 3 positions
    • Package Weight Lbs : 249.476 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Signaling Unit Head : octagonal
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=466985&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : basic element
