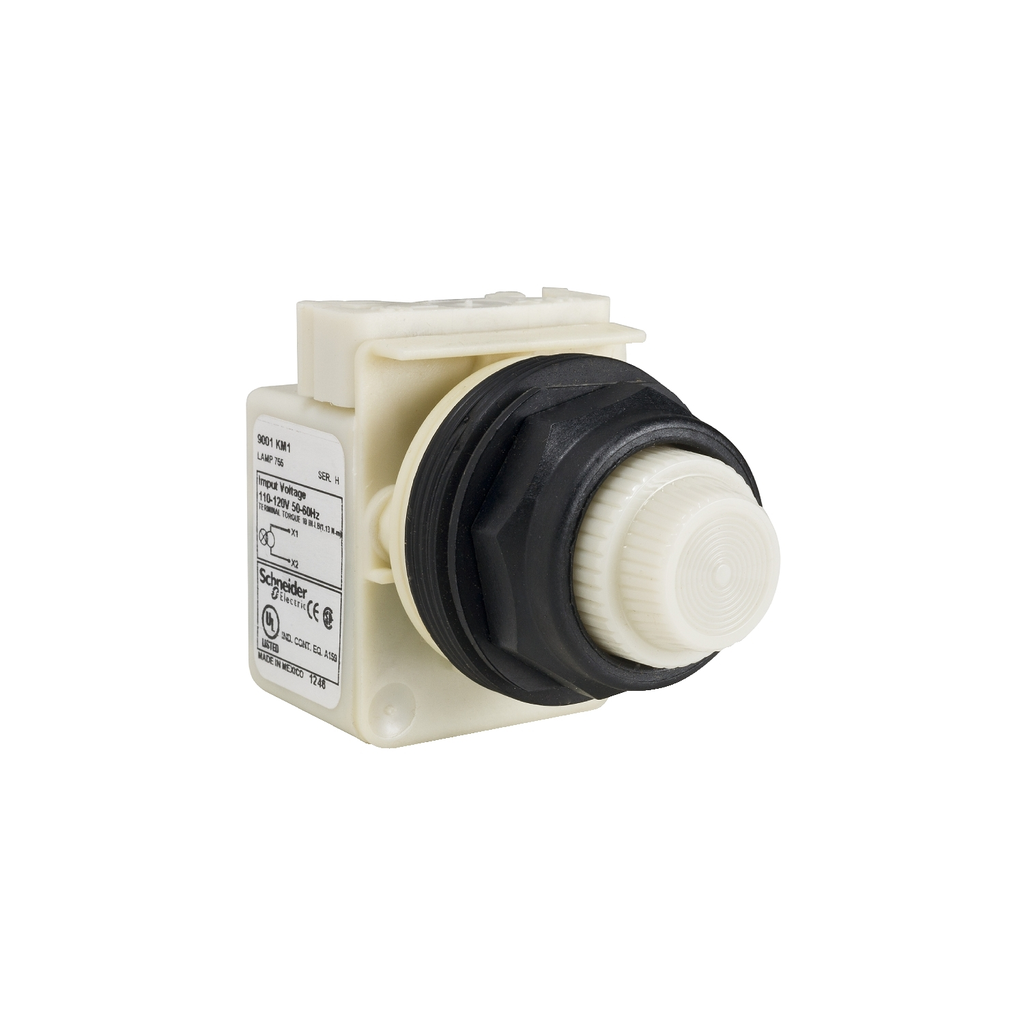

Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, white, 30mm, 110-120V

PILOT LIGHT 120VAC 30MM SK +OP

SQD9001SKP1W31 9001SKP1W31 785901041153
188.60 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, white, 30mm, 110-120V-1
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Lens Material: Polycarbonate
  • Light Source: Incandescent
  • Warranty Length: 18 mth
This Harmony 9001SK, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • US Rated Supply Voltage
    • 110...120 V AC
  • Light Block Supply
    • via transformer 120 V AC 50/60 Hz
    • via integral transformer 110 V AC 50/60 Hz
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKP1W31_CAD&p_File_name=9001SKP1W31_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKP1W31_CAD&p_File_name=9001SKP1W31_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKP1W31_CAD&p_File_name=9001SKP1W31_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKP1W31_CAD&p_File_name=9001SKP1W31_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKP1W31_CAD&p_File_name=9001SKP1W31_2D Right Side View.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Lens Type
    • fresnel plastic
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Physical Attributes
    • Cad Overall Depth : 42 mm
    • Cad Overall Height : 70 mm
    • Cad Overall Width : 54 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Lens Material : polycarbonate
    • Light Source : incandescent
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 167.829 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001SK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=680048&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
