Schneider Electric at Mayer

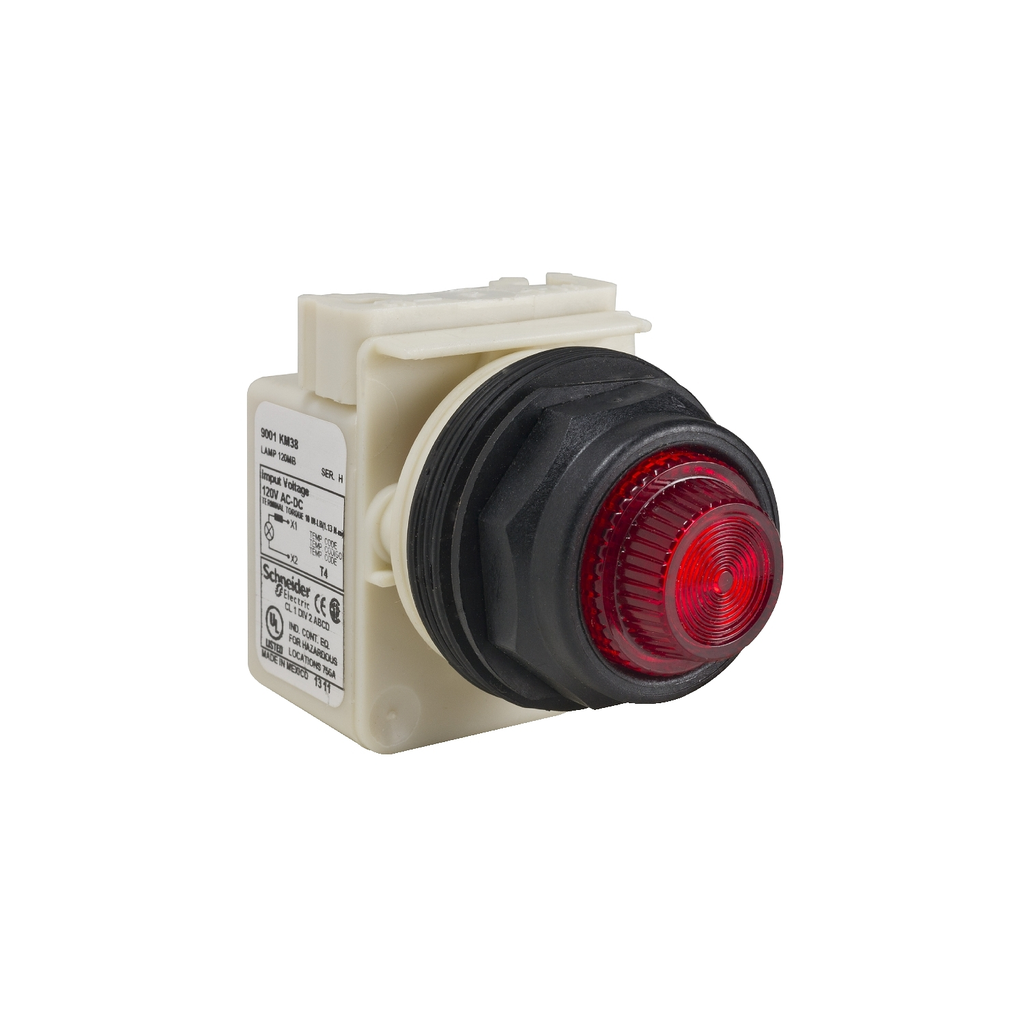

30mm push button, Type SK, pilot light, 120VAC/VDC full voltage light module, red plastic fresnel lens, NEMA 4, 4X

PILOT LIGHT 120V 30MM SK +OPTI

SQD9001SKP38R31 9001SKP38R31 785901041573
134.23 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type SK, pilot light, 120VAC/VDC full voltage light module, red plastic fresnel lens, NEMA 4, 4X-1
  • Bezel Material: Plastic
  • Lens Type: Fresnel, Fresnel Plastic
  • Warranty Length: 18 mth
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This standard pilot light has a plastic ring nut. This pilot light has a 110/120 VAC/VDC full voltage light module to provide the illumination. The light module has an incandescent lamp. This operator is supplied with a red plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Specifications
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This standard pilot light has a plastic ring nut. This pilot light has a 110/120 VAC/VDC full voltage light module to provide the illumination. The light module has an incandescent lamp. This operator is supplied with a red plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Environment
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710019EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710019EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 120 V
    • Bezel Material : plastic
    • Lens Material : polycarbonate
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Light Block Supply : full voltage or resistor
    • Operating Mode : normal
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
    • Size : 30 mm
    • Bulb Base : BA 9s
    • Lens Type : fresnel
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : full voltage 120 V
    • Product Or Component Type : pilot light
    • Lens Type : fresnel plastic
