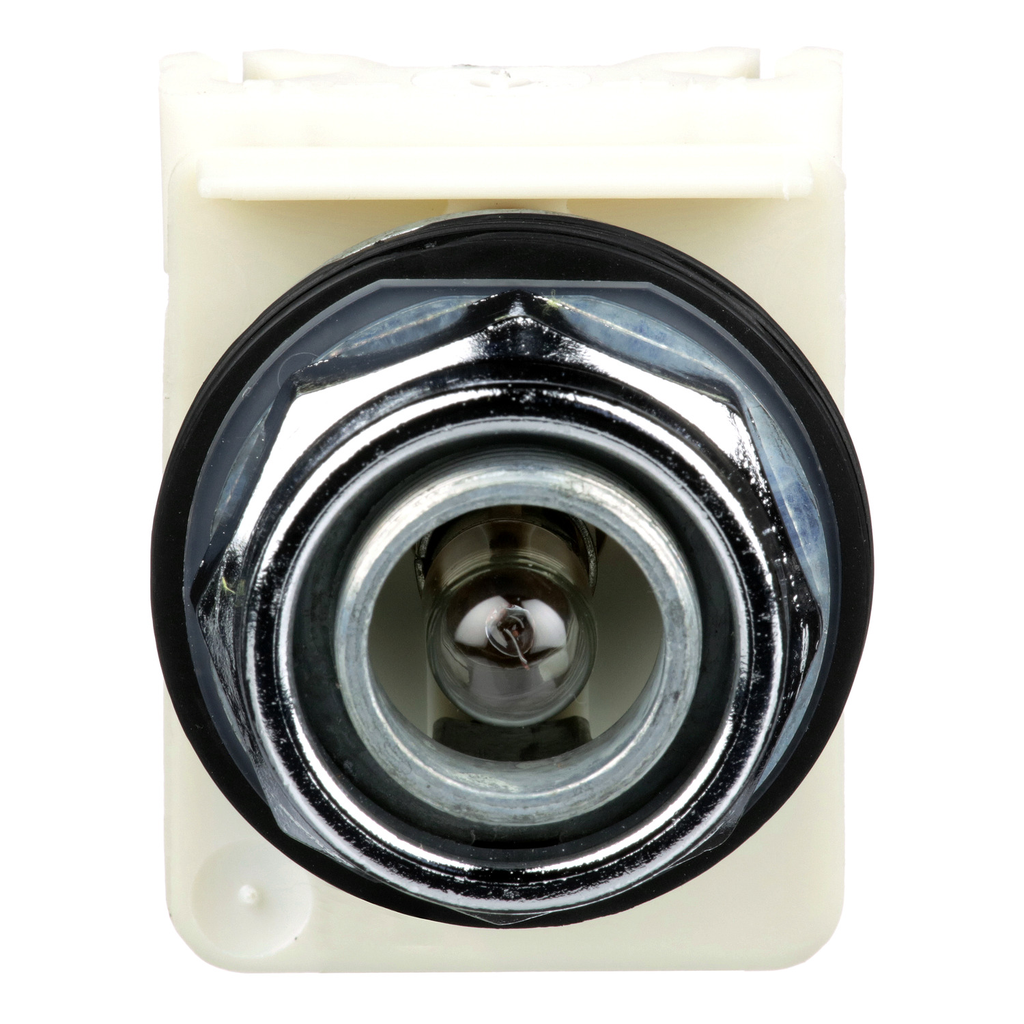

Pilot light head, Harmony 9001K, metal, without cap, 30mm, 120VAC

PILOT-LIGHT - 30MM 120V

SQD9001KP1 9001KP1 785901732501
171.42 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : without cap
  • Conformance Attributes
    • Product Certifications : CE, CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR
  • Complementary Attributes
    • Us Rated Supply Voltage : 110...120 V
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : via transformer 110 V AC 50/60 Hz, via transformer 120 V AC 50/60 Hz, via integral transformer
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Device Short Name : K
    • Light Source : incandescent bulb
    • Mounting Diameter : 30 mm
    • Operating Mode : normal
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Screw Head : round
    • Supply Frequency : 50...60 Hz
    • Sustainable Packaging : Yes
    • Cap Operator Or Lens Color : without cap
    • Warranty In Months : 18
    • Pep Code : ENVPEP2503027EN
    • Offer Owner Code : 190786
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP65/IP66
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for pilot light
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
