APPLETON

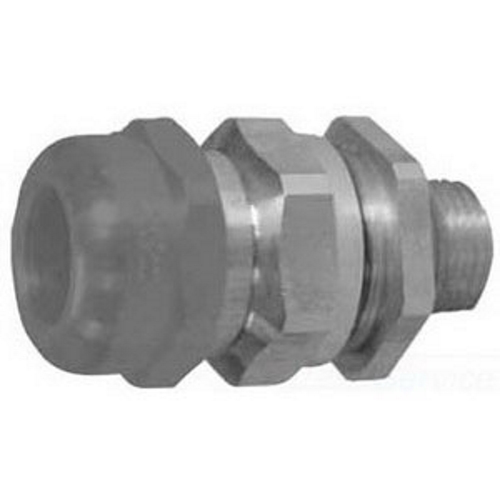

Appleton™ TMCX Connectors For Metal Clad Cable - PN TMCX075A

3/4 IN HAZ LOC MC CONN ALUM

APPTMCX075A TMCX075A 781381083348
113.70 / Each
Appleton™ TMCX Connectors are designed for use with MC/MCHL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLX) cables. They provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
  • Product Description
  • Features
  • Specifications
Appleton™ TMCX Connectors are designed for use with MC/MCHL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLX) cables. They provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
  • Features
    • For use on horizontal or vertical runs
    • Independent sealing and armor clamping
    • True 360° grounding
    • Superior pull out prevention
    • Compact slim profile
    • Widest cable acceptance range
    • Supplied complete with epoxy sealing compound
    • Disconnectable design
    • Additional integral deluge proof seal for protection in extreme offshore and onshore environments.
  • Specifications
    • Connector Materials : Bodies, sleeve and gland nut are available in copperfree (4/10 of 1% max.) aluminum, nickel plated brass, or stainless steel
    • Other Standard Materials : Grounding spring is stainless steel. Bushing is LSF-TPE (halogen free). End stop washer is nylon. Viton o-ring.
    • Trade Sizes : 1/2 thru 4
    • Cable Jacket Diameter Range : 0.354 thru 4.220
    • Cable Armor Diameter Range : 0.342 thru 4.020
    • Threads : NPT threads are standard. Metric threads available (add metric thread size to the end of catalog number)
  • Certifications and Compliances
    • NEC/CEC Certifications and Compliances : Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1, AExd IIC; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 4X; IP66
