Opticom® FAP, OS2, 6 LC Duplex, Blue

Opticom® FAP, OS2, 6 LC Duplex, Blue

PANFAP6WBUDLCZ FAP6WBUDLCZ 074983395378
138.48 / EA
http://schema.org/OutOfStock
Mayer-DDS-Opticom® FAP, OS2, 6 LC Duplex, Blue-1
  • Connection Type: LC
  • Country of Origin: USA
  • Depth: 1.73 in, 44 mm
  • Height: 1.38 in, 35.2 mm
  • Material: Zicornia Ceramic
  • Type: Front Loading Adapter Panel
  • Width: 109.1 mm, 4.3 in

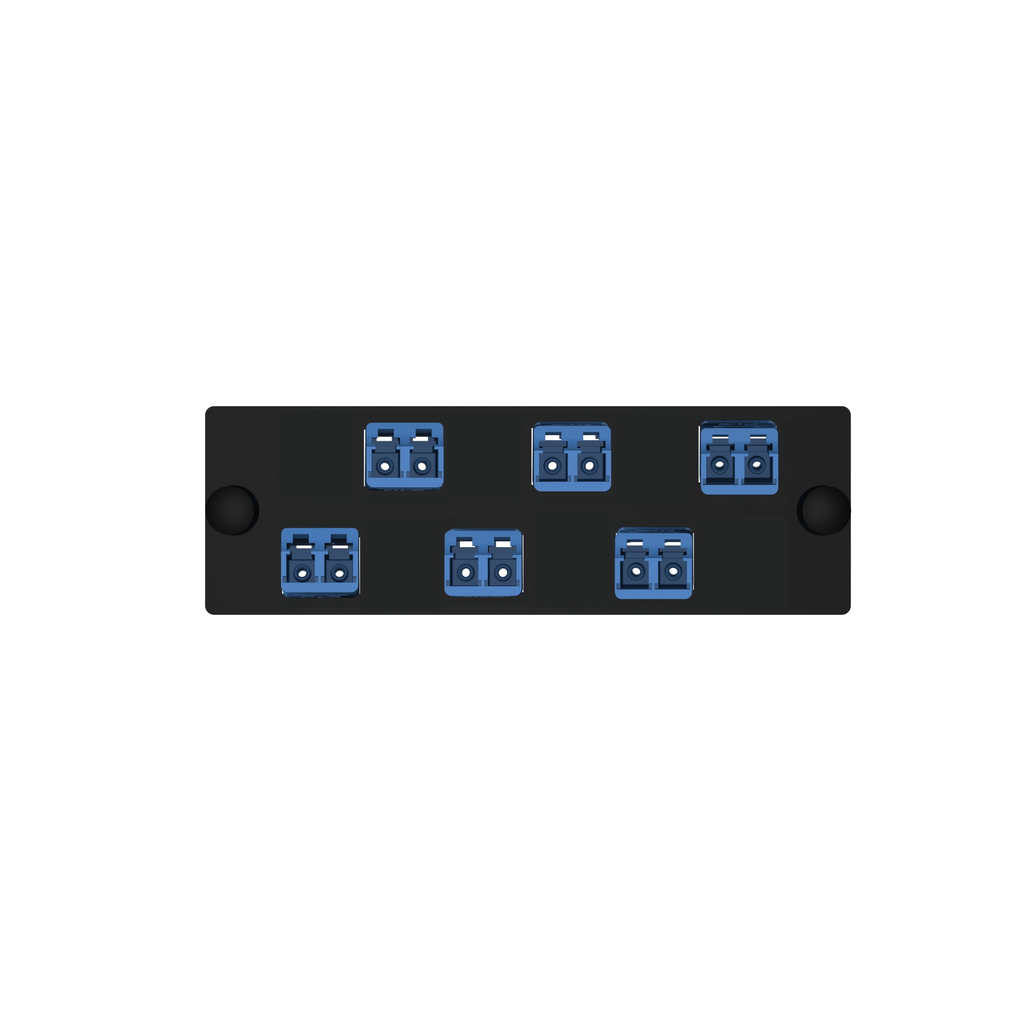

The Opticom® LC fiber adapter panel is OS2 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are blue with zirconia split sleeves.
QTY
  • Product Description
  • Specifications
The Opticom® LC fiber adapter panel is OS2 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are blue with zirconia split sleeves.
  • Specifications
    • Product Segment : EDI-DC
    • Connection Type : LC
    • Fiber Type : OS2
    • Material : Zirconia Ceramic
    • Adapter Color : Blue
    • Overall Width (In.) : 4.3
    • Overall Width (mm) : 109.1
    • Overall Depth (mm) : 44
    • Overall Depth (In.) : 1.73
    • Overall Height (mm) : 35.2
    • Overall Height (In.) : 1.38
    • Number of Ports : 6
    • Standards Met : RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements
    • Product Type : Front Loading Adapter Panel
    • Application : Used with Opticom® Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom ® Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas
    • Sub Brand : Opticom®
    • Color : Black
  • Packaging Details
    • UPC : 07498339537
    • GTIN Package : 00074983395378
    • Standard Package Volume Ft3 : 0.0334
    • Standard Package Weight Pounds : 0.1780
    • Std Package Height In : 1.6
    • Std Package Height MM : 40.64
    • Std Package Length In : 6.4
    • Std Package Length MM : 162.56
    • Std Package Width In : 5.1
    • Std Package Width MM : 129.54
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983395373
    • Standard Carton Volume Ft3 : 0.3336
    • Standard Carton Weight Pounds : 1.7800
    • Std Carton Height In : 5.65
    • Std Carton Height MM : 143.51
    • Std Carton Length In : 15.6
    • Std Carton Length MM : 396.24
    • Std Carton Width In : 6.45
    • Std Carton Width MM : 163.83
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983395378
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 10
    • Pallet Quantity : 1,280
    • Pallet Volume : 42.695111
    • Pallet Weight : 227.8400
