ABM112-AT-C Cable Tie Mount, White, PA 6.6, Acrylic Adh., 1.12x1.12", PK100

CABLE TIE MNT 1.12X1.12 HT WHT

PANABM112ATC ABM112-AT-C 074983642649
1.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-ABM112-AT-C Cable Tie Mount, White, PA 6.6, Acrylic Adh., 1.12x1.12", PK100-1
  • Country of Origin: USA
  • Environment: Indoor
  • Height: 0.2 in, 5.1 mm
  • Material: Nylon
  • Max. Operating Temperature: 180 °F, 82 °C
  • Min. Operating Temperature: -20 °F, -29 °C
  • Mounting Type: Adhesive Tape
  • Overall Length: 1.12 in, 28.5 mm
  • Type: Cable Tie Mount
  • Width: 1.12 in, 50.3 mm

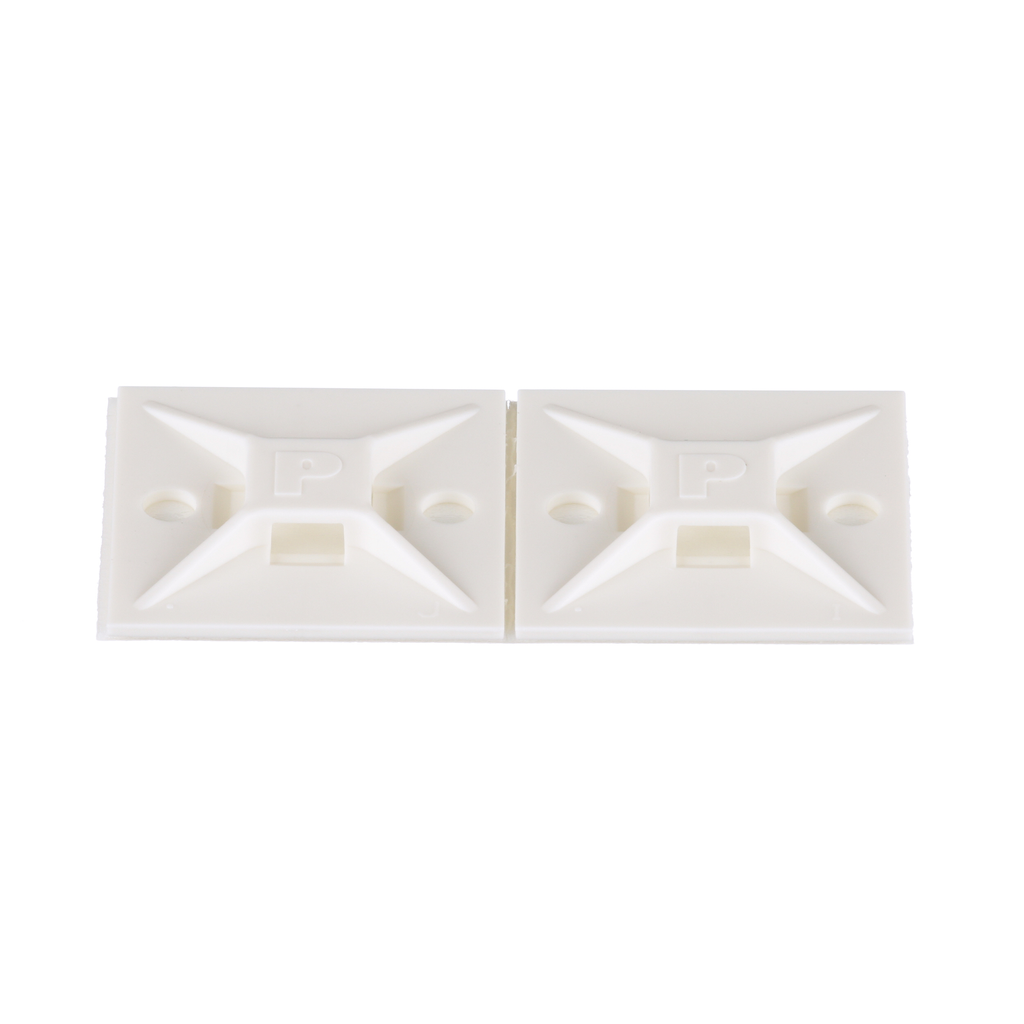

Panduit’s ABM112-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature cable ties and are intended for use in indoor, high-temperature environments. The mounts are 1.12” x 1.12” (28.6mm x 28.6mm), supplied in strips of 2, are white in color and come in packages of 100.
QTY
  • Product Description
  • Specifications
Panduit’s ABM112-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature cable ties and are intended for use in indoor, high-temperature environments. The mounts are 1.12” x 1.12” (28.6mm x 28.6mm), supplied in strips of 2, are white in color and come in packages of 100.
  • Packaging Details
    • UPC : 07498364264
    • GTIN Package : 00074983642649
    • Standard Package Volume Ft3 : 0.0420
    • Standard Package Weight Pounds : 0.3700
    • Std Package Height In : 1.95
    • Std Package Height MM : 49.53
    • Std Package Length In : 7.2
    • Std Package Length MM : 182.88
    • Std Package Width In : 6
    • Std Package Width MM : 152.4
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983642644
    • Standard Carton Volume Ft3 : 0.4196
    • Standard Carton Weight Pounds : 3.7000
    • Std Carton Height In : 7.05
    • Std Carton Height MM : 179.07
    • Std Carton Length In : 10.95
    • Std Carton Length MM : 278.13
    • Std Carton Width In : 9.05
    • Std Carton Width MM : 229.87
    • Std Ctn Qty : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983642649
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 500
    • Pallet Quantity : 96,000
    • Pallet Volume : 40.283433
    • Pallet Weight : 355.2000
  • Specifications
    • Product Segment : IEI
    • Product Type : Cable Tie Mount
    • Application : Used with Miniature, Intermediate, and Standard Cables Ties
    • Color : White
    • Environment : Indoor
    • Material : Nylon 6.6
    • Maximum Compatible Panel Thickness (In.) : 0.04
    • Maximum Compatible Panel Thickness (mm) : 1
    • Maximum Operating Temperature (°C) : 82
    • Maximum Operating Temperature (°F) : 180
    • Minimum Operating Temperature (°C) : -29
    • Minimum Operating Temperature (°F) : -20
    • Mount Method : Adhesive Tape
    • Mounting Hole Thread Size : 0.14
    • Overall Height (mm) : 5.1
    • Overall Height (In.) : 0.2
    • Overall Length (In.) : 1.12
    • Overall Length (mm) : 28.5
    • Overall Width (In.) : 1.12
    • Overall Width (mm) : 50.3
    • Standards Met : CE Compliant, UL Recognized, RoHS Compliant
    • Static Load Capacity (lb) : 0.63
    • Static Load Capacity (kg) : 0.286
    • For Use With : Miniature, Intermediate, Standard Cross-Section Ties
