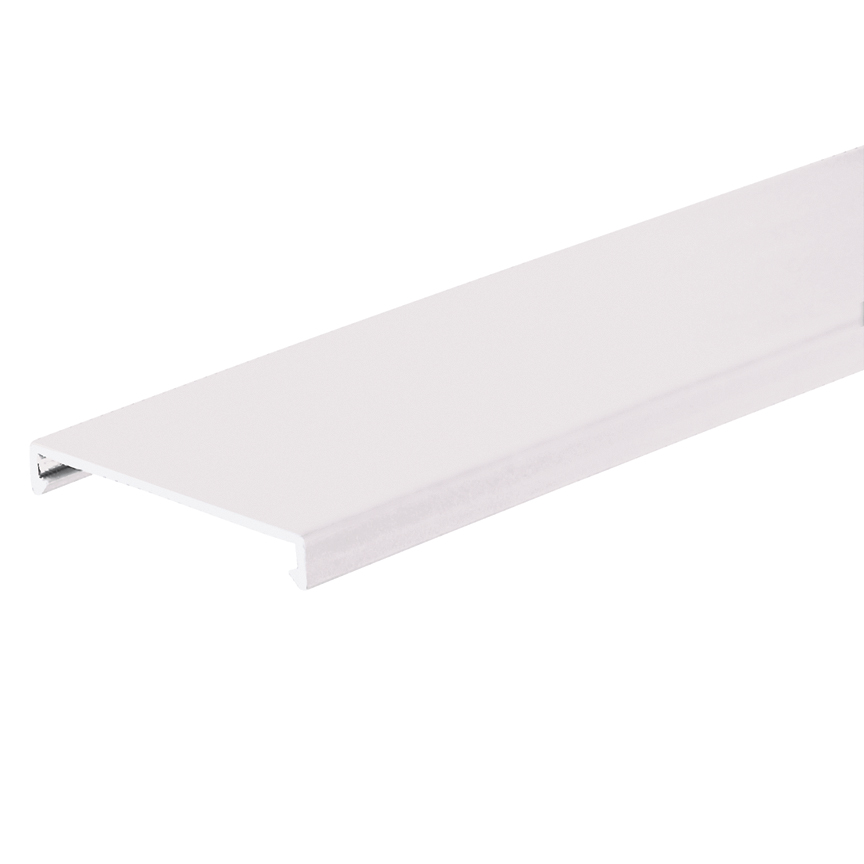

Panduct® C1.5WH6-F Flush Duct Cover

DUCT COVER 1.5IN 6FT WHT

PANC1.5WH6F C1.5WH6-F 074983004607
2.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-Panduct® C1.5WH6-F Flush Duct Cover-1
  • Country of Origin: USA
  • Height: 0.35 in, 8.9 mm
  • Material: PVC
  • Mounting Type: Snap-On
  • Overall Length: 1.8 m, 6 ft
  • Type: Flushed Duct Cover
  • Width: 1.75 in, 44.5 mm
The C1.5WH6-F PVC Flush Wiring Duct Cover with Protective Film features a temporary protection film that protects duct covers from damage during the installation process. The cover features a non-slip, liner to prevent cover slide. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 1.75" (8.9 mm x 44.5 mm) and 6' (1.83 m) long. Color White.
QTY
  • Product Description
  • Specifications
The C1.5WH6-F PVC Flush Wiring Duct Cover with Protective Film features a temporary protection film that protects duct covers from damage during the installation process. The cover features a non-slip, liner to prevent cover slide. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 1.75" (8.9 mm x 44.5 mm) and 6' (1.83 m) long. Color White.
  • Packaging Details
    • UPC : 07498300460
    • GTIN Package : 00074983004607
    • Standard Package Volume Ft3 : 0.0232
    • Standard Package Weight Pounds : 0.5400
    • Std Package Height In : .1
    • Std Package Height MM : 2.54
    • Std Package Length In : 72
    • Std Package Length MM : 1828.8
    • Std Package Width In : 1.5
    • Std Package Width MM : 38.1
    • Std. Pkg. UOM : Foot
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • GTIN Carton : 50074983004602
    • Standard Carton Volume Ft3 : 0.4645
    • Standard Carton Weight Pounds : 10.8000
    • Std Carton Height In : 2.3
    • Std Carton Height MM : 58.42
    • Std Carton Length In : 72.7
    • Std Carton Length MM : 1846.58
    • Std Carton Width In : 4.8
    • Std Carton Width MM : 121.92
    • Std Ctn Qty : 120
    • Min. Order UOM : Foot
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983004607
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 120
    • Pallet Quantity : 9,720
    • Pallet Volume : 37.622250
    • Pallet Weight : 874.8000
  • Specifications
    • Product Segment : IEI
    • Note : Base and Cover Sold Separately.
    • Product Type : Flushed Duct Cover
    • Application : Cover for Wiring Duct with protective film to protect the surface during storage, handling, andinstallation.
    • Sub Brand : Panduct®
    • Color : White
    • For Use With : Type G, Type F, Type D and Type FS Duct Base
    • Material : PVC
    • Material Properties : Lead-Free
    • Standards Met : UL Recognized; CE Compliant; CSA Certified; RoHS Compliant; Flammability Rating of UL94V-0 after protective film is removed
    • Compatible Duct Width (In.) : 1.5
    • Compatible Duct Width (mm) : 38.1
    • Overall Height (In.) : 0.35
    • Overall Height (mm) : 8.9
    • Overall Length (ft.) : 6
    • Overall Length (m) : 1.8
    • Overall Width (In.) : 1.75
    • Overall Width (mm) : 44.5
    • Mount Method : Snap-On
    • Wiring Duct Style : Flush Cover with Film
