Reel Smart™ DNF14-187FIB-3K Disconnects on a Reel

FEM DISC VIB RESIST #16-14

PANDNF14187FIB3K DNF14-187FIB-3K 074983709786
0.32 / EA
http://schema.org/OutOfStock
Mayer-DDS-Reel Smart™ DNF14-187FIB-3K Disconnects on a Reel-1
  • Country of Origin: Mexico
  • Material: Brass
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.78 in, 19.8 mm
  • Type: Disconnect
  • Width: 0.29 in, 7.4 mm

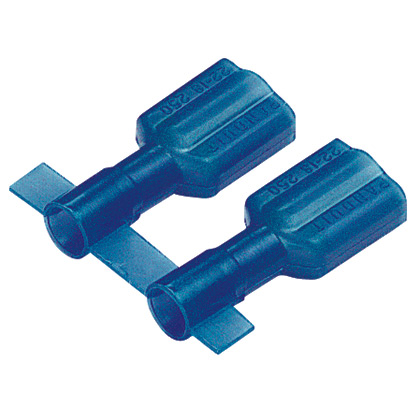

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, standard receptacle housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
QTY
  • Product Description
  • Specifications
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, standard receptacle housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect
    • Insulation Material : Nylon
    • Insulation Type : Fully Insulated
    • Minimum Wire Size (AWG) : #16
    • Maximum Copper Conductor Size (AWG) : #14
    • Maximum Wire Size (AWG) : #14
    • Minimum Copper Conductor Size (AWG) : #16
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 1932-09-01
    • Tab Size (In.) : 0.187 x 0.032
    • Tab Size (mm) : 4.8 x 0.8
    • Standards Met : UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
    • Maximum Voltage (V) : 600
    • Finish/Coating : Tin-Plated
    • Base Material : Brass
    • Color Code : Blue
    • Barrel Type : Funnel Entry
    • Flammability Rating : UL94-HB
    • Insulation Diameter (In.) : 0.22
    • Insulation Diameter (mm) : 5.6
    • Maximum Operating Temperature (°C) : 105
    • Sub Brand : Reel Smart™
    • Maximum Operating Temperature (°F) : 221
    • Minimum Metric Conductor Size (mm²) : 1.5
    • Maximum Metric Conductor Size (mm²) : 2.5
    • Maximum Wire Insulation Diameter (mm) : 4.1
    • Maximum Wire Insulation Diameter (In.) : 0.16
    • Overall Length (mm) : 19.8
    • Overall Length (In.) : 0.78
    • Overall Width (mm) : 7.4
    • Overall Width (In.) : 0.29
    • Tongue Angle : Straight
    • Seam Type : Butted
    • Packaging Type : Reel
    • Product Type : Disconnect
    • For Use With : Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator
    • Maximum Voltage (kV) : 0.6
  • Packaging Details
    • UPC : 07498370978
    • GTIN Package : 00074983709786
    • Standard Package Volume Ft3 : 0.9208
    • Standard Package Weight Pounds : 9.3000
    • Std Package Height In : 2.4
    • Std Package Height MM : 60.96
    • Std Package Length In : 26.1
    • Std Package Length MM : 662.94
    • Std Package Width In : 25.4
    • Std Package Width MM : 645.16
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 3000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983709786
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 3,000
    • Pallet Quantity : 48,000
    • Pallet Weight : 148.8000
