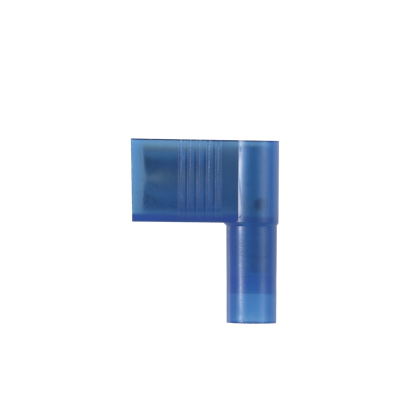

Pan-Term® DNFR14-250B-M Disconnect, 90°, Blue, Nylon, 14-16 AWG, 0.250 x 0.032"

FEM DISC 90D #16-14

PANDNFR14250BM DNFR14-250B-M 074983826629
0.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® DNFR14-250B-M Disconnect, 90°, Blue, Nylon, 14-16 AWG, 0.250 x 0.032"-1
  • Country of Origin: Mexico
  • Height: 0.2 in, 5.1 mm
  • Material: Brass
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.63 in, 16 mm
  • Type: Disconnect
  • Width: 0.63 in, 16 mm
Panduit DNFR14-250B-M Female Disconnect
QTY
  • Product Description
  • Specifications
Panduit DNFR14-250B-M Female Disconnect
  • Packaging Details
    • UPC : 07498382662
    • GTIN Package : 00074983826629
    • Standard Package Volume Ft3 : 0.7483
    • Standard Package Weight Pounds : 3.8000
    • Std Package Height In : 4.35
    • Std Package Height MM : 110.49
    • Std Package Length In : 9.1
    • Std Package Length MM : 231.14
    • Std Package Width In : 4.4
    • Std Package Width MM : 111.76
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983826629
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000
    • Pallet Quantity : 288,000
    • Pallet Weight : 1,094.4000
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect-Right Angle
    • Insulation Material : Nylon
    • Insulation Type : Fully Insulated
    • Maximum Wire Size (AWG) : #14
    • Maximum Copper Conductor Size (AWG) : #14
    • Minimum Wire Size (AWG) : #16
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 9/32
    • Tab Size (mm) : 6.3 x 0.8
    • Tab Size (In.) : 0.250 x 0.032
    • Standards Met : UL 310, CSA 22.2 No.153
    • Maximum Voltage (V) : 600
    • Base Material : Brass
    • Finish/Coating : Tin-Plated
    • Color Code : Blue
    • Barrel Type : Funnel Entry
    • Flammability Rating : UL94-HB
    • Maximum Operating Temperature (°C) : 105
    • Maximum Operating Temperature (°F) : 221
    • Sub Brand : Pan-Term®
    • Minimum Metric Conductor Size (mm²) : 1.5
    • Maximum Metric Conductor Size (mm²) : 2.5
    • Maximum Wire Insulation Diameter (mm) : 3.94
    • Maximum Wire Insulation Diameter (In.) : 0.155
    • Overall Height (In.) : 0.2
    • Overall Height (mm) : 5.1
    • Overall Length (mm) : 16
    • Overall Length (In.) : 0.63
    • Overall Width (mm) : 16
    • Overall Width (In.) : 0.63
    • Tongue Angle : Right Angle
    • Packaging Type : Box
    • Product Type : Disconnect
    • For Use With : CT-300-1
    • Maximum Voltage (kV) : 0.6
