Reel Smart™ DNF14-250FIB-3K Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab

FEM DISC VIB RESIST #16-14

PANDNF14250FIB3K DNF14-250FIB-3K 074983826933
0.31 / EA
http://schema.org/OutOfStock

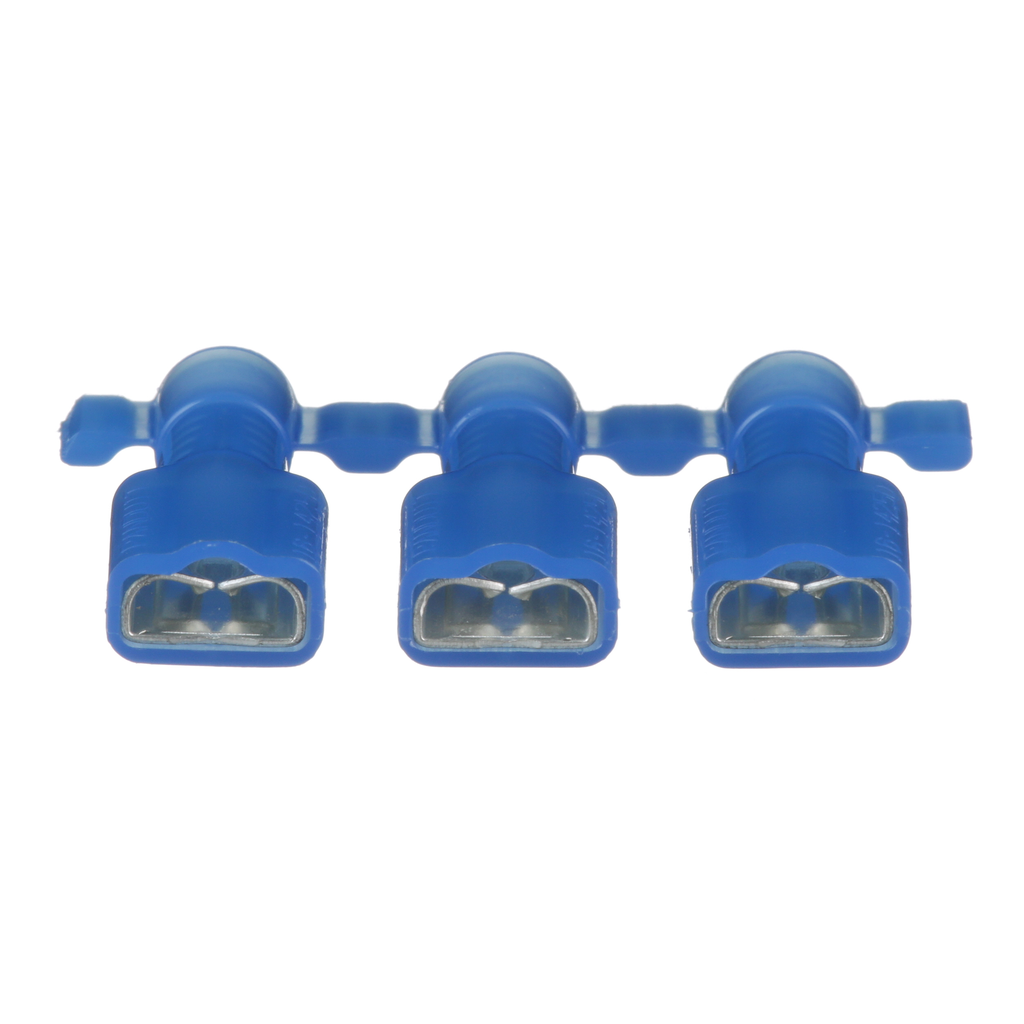

Mayer-DDS-Reel Smart™ DNF14-250FIB-3K Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab-1
  • Country of Origin: Mexico
  • Height: 0.22 in, 5.6 mm
  • Material: Brass
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.84 in, 21.3 mm
  • Type: Disconnect
  • Width: 0.35 in, 8.9 mm
Panduit DNF14-250FIB-3K Female Disconnect
QTY
  • Product Description
  • Specifications
Panduit DNF14-250FIB-3K Female Disconnect
  • Packaging Details
    • UPC : 07498382693
    • GTIN Package : 00074983826933
    • Standard Package Volume Ft3 : 0.9208
    • Standard Package Weight Pounds : 10.5000
    • Std Package Height In : 2.4
    • Std Package Height MM : 60.96
    • Std Package Length In : 26.1
    • Std Package Length MM : 662.94
    • Std Package Width In : 25.4
    • Std Package Width MM : 645.16
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 3000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983826933
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 3,000
    • Pallet Quantity : 48,000
    • Pallet Weight : 168.0000
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect
    • Insulation Material : Nylon
    • Insulation Type : Fully Insulated
    • Maximum Copper Conductor Size (AWG) : #14
    • Minimum Wire Size (AWG) : #16
    • Maximum Wire Size (AWG) : #14
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 9/32
    • Tab Size (In.) : 0.250 x 0.032
    • Tab Size (mm) : 6.3 x 0.8
    • Standards Met : UL 310, CSA 22.2 No.153
    • Maximum Voltage (V) : 600
    • Finish/Coating : Tin-Plated
    • Base Material : Brass
    • Color Code : Blue
    • Barrel Type : Funnel Entry
    • Flammability Rating : UL94-HB
    • Maximum Operating Temperature (°C) : 105
    • Maximum Operating Temperature (°F) : 221
    • Sub Brand : Reel Smart™
    • Maximum Metric Conductor Size (mm²) : 2.5
    • Minimum Metric Conductor Size (mm²) : 1.5
    • Maximum Wire Insulation Diameter (mm) : 4.06
    • Maximum Wire Insulation Diameter (In.) : 0.16
    • Overall Height (mm) : 5.6
    • Overall Height (In.) : 0.22
    • Overall Length (In.) : 0.84
    • Overall Length (mm) : 21.3
    • Overall Width (mm) : 8.9
    • Overall Width (In.) : 0.35
    • Tongue Angle : Straight
    • Packaging Type : Reel
    • Product Type : Disconnect
    • For Use With : Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator
    • Maximum Voltage (kV) : 0.6
