Pan-Term® DNF10-250FIB-D Disconnect, Ins., Ylw, Nylon, 10-12 AWG, 0.250 x 0.032"

FEM DISC VIB RESIST #12-10

PANDNF10250FIBD DNF10-250FIB-D 074983740536
0.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® DNF10-250FIB-D Disconnect, Ins., Ylw, Nylon, 10-12 AWG, 0.250 x 0.032"-1
  • Country of Origin: Mexico
  • Height: 0.23 in, 5.8 mm
  • Material: Brass
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.96 in, 24.4 mm
  • Type: Disconnect
  • Width: 0.35 in, 8.9 mm

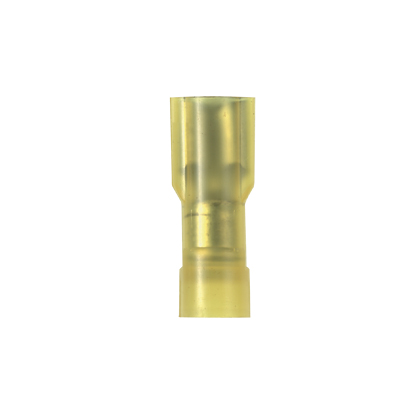

Panduit DNF10-250FIB-D Female Disconnect
QTY
  • Product Description
  • Specifications
Panduit DNF10-250FIB-D Female Disconnect
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect
    • Insulation Type : Fully Insulated
    • Insulation Material : Nylon
    • Maximum Copper Conductor Size (AWG) : #10
    • Minimum Wire Size (AWG) : #12
    • Maximum Wire Size (AWG) : #10
    • Wire Strip Length (In.) : 3/8
    • Wire Strip Length (mm) : 9.5
    • Tab Size (In.) : 0.250 x 0.032
    • Tab Size (mm) : 6.3 x 0.8
    • Standards Met : UL 310, CSA 22.2 No.153
    • Maximum Voltage (V) : 600
    • Base Material : Brass
    • Finish/Coating : Tin-Plated
    • Color Code : Yellow
    • Barrel Type : Funnel Entry
    • Flammability Rating : UL94-HB
    • Maximum Operating Temperature (°F) : 221
    • Sub Brand : Pan-Term®
    • Maximum Operating Temperature (°C) : 105
    • Minimum Metric Conductor Size (mm²) : 4
    • Maximum Metric Conductor Size (mm²) : 6
    • Maximum Wire Insulation Diameter (In.) : 0.22
    • Maximum Wire Insulation Diameter (mm) : 5.6
    • Overall Height (In.) : 0.23
    • Overall Height (mm) : 5.8
    • Overall Length (In.) : 0.96
    • Overall Length (mm) : 24.4
    • Overall Width (In.) : 0.35
    • Overall Width (mm) : 8.9
    • Tongue Angle : Straight
    • Packaging Type : Box
    • Product Type : Disconnect
    • For Use With : CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
    • Maximum Voltage (kV) : 0.6
  • Packaging Details
    • UPC : 07498374053
    • GTIN Package : 00074983740536
    • Standard Package Volume Ft3 : 0.0641
    • Standard Package Weight Pounds : 2.5500
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 8.2
    • Std Package Length MM : 208.28
    • Std Package Width In : 4.35
    • Std Package Width MM : 110.49
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983740536
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : Y
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 500
    • Pallet Quantity : 200,000
    • Pallet Weight : 1,020.0000
