Reel Smart™ DV10-250C-2K Disconnects on a Reel

DISC,F,COM,YLVN,.250X.032",12-

PANDV10250C2K DV10-250C-2K 074983722716
0.60 / EA
http://schema.org/OutOfStock

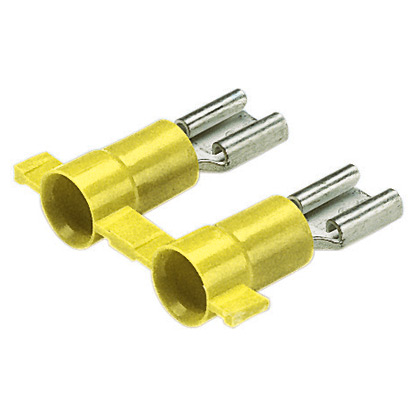

Mayer-DDS-Reel Smart™ DV10-250C-2K Disconnects on a Reel-1
  • Country of Origin: Mexico
  • Height: 0.12 in, 3.1 mm
  • Material: Brass
  • Max. Operating Temperature: 150 °C, 302 °F
  • Overall Length: 0.95 in, 24.1 mm
  • Type: Disconnect
  • Width: 0.29 in, 7.4 mm
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.95" (24.1 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of 2000.
QTY
  • Product Description
  • Specifications
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.95" (24.1 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of 2000.
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect-Compressor
    • Insulation Material : Vinyl
    • Insulation Type : Barrel Insulated
    • Maximum Wire Size (AWG) : #10
    • Maximum Copper Conductor Size (AWG) : #10
    • Minimum Wire Size (AWG) : #12
    • Minimum Copper Conductor Size (AWG) : #12
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 1932-09-01
    • Tab Size (mm) : 6.3 x 0.8
    • Tab Size (In.) : 0.250 x 0.032
    • Standards Met : UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
    • Maximum Voltage (V) : 600
    • Finish/Coating : Tin-Plated
    • Base Material : Brass
    • Color Code : Yellow
    • Barrel Type : Standard
    • Flammability Rating : UL94V-0
    • Insulation Diameter (mm) : 5.8
    • Insulation Diameter (In.) : 0.23
    • Sub Brand : Reel Smart™
    • Maximum Operating Temperature (°F) : 302
    • Maximum Operating Temperature (°C) : 150
    • Maximum Metric Conductor Size (mm²) : 6
    • Minimum Metric Conductor Size (mm²) : 4
    • Maximum Wire Insulation Diameter (In.) : 0.23
    • Maximum Wire Insulation Diameter (mm) : 5.8
    • Overall Height (In.) : 0.12
    • Overall Height (mm) : 3.1
    • Overall Length (mm) : 24.1
    • Overall Length (In.) : 0.95
    • Overall Width (In.) : 0.29
    • Overall Width (mm) : 7.4
    • Tongue Angle : Straight
    • Seam Type : Butted
    • Packaging Type : Reel
    • Product Type : Disconnect
    • For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator
    • Maximum Voltage (kV) : 0.6
  • Packaging Details
    • UPC : 07498372271
    • GTIN Package : 00074983722716
    • Standard Package Volume Ft3 : 0.9208
    • Standard Package Weight Pounds : 10.8000
    • Std Package Height In : 2.4
    • Std Package Height MM : 60.96
    • Std Package Length In : 26.1
    • Std Package Length MM : 662.94
    • Std Package Width In : 25.4
    • Std Package Width MM : 645.16
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 2000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983722716
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 2,000
    • Pallet Quantity : 32,000
    • Pallet Weight : 172.8000
