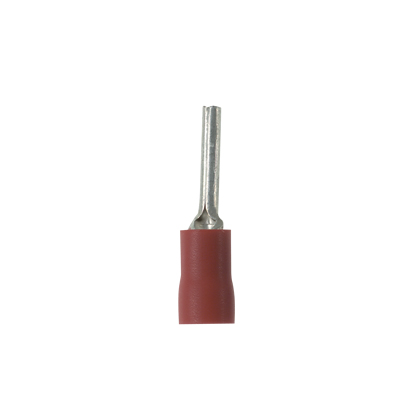

Pan-Term® PV18-P47-CY Pin Terminal, Red, Vinyl, 18-22 AWG, 12.4mm Pin L, PK100

PIN TERM #22-18

PANPV18P47CY PV18-P47-CY 074983694822
1.55 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PV18-P47-CY Pin Terminal, Red, Vinyl, 18-22 AWG, 12.4mm Pin L, PK100-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.97 in, 24.6 mm
  • Type: Pin Terminal
Panduit PV18-P47-CY Vinyl Insulated Pin Terminal
QTY
  • Product Description
  • Specifications
Panduit PV18-P47-CY Vinyl Insulated Pin Terminal
  • Packaging Details
    • UPC : 07498369482
    • GTIN Package : 00074983694822
    • Standard Package Volume Ft3 : 0.0037
    • Standard Package Weight Pounds : 0.2100
    • Std Package Height In : 1.75
    • Std Package Height MM : 44.45
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.8
    • Std Package Width MM : 45.72
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983694827
    • Standard Carton Volume Ft3 : 0.0368
    • Standard Carton Weight Pounds : 2.1000
    • Std Carton Height In : 3.65
    • Std Carton Height MM : 92.71
    • Std Carton Length In : 9.45
    • Std Carton Length MM : 240.03
    • Std Carton Width In : 4.15
    • Std Carton Width MM : 105.41
    • Std Ctn Qty : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983694822
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 100
  • Specifications
    • Product Segment : IEI
    • Pin Length (mm) : 12.4
    • Pin Length (In.) : 0.49
    • Pin Diameter (In.) : 0.07
    • Pin Diameter (mm) : 1.8
    • Insulation Material : Vinyl
    • Maximum Copper Conductor Size (AWG STR) : #18
    • Maximum Wire Size (AWG) : 22 - 18 AWG
    • Maximum Copper Conductor Size (AWG SOL) : #18
    • Minimum Copper Conductor Size (AWG SOL) : #22
    • Minimum Copper Conductor Size (AWG STR) : #22
    • Wire Strip Length (mm) : 7.9
    • Wire Strip Length (In.) : 5/16
    • Standards Met : UL486A/B
    • Maximum Voltage (kV) : 0.6
    • Maximum Voltage (V) : 600
    • Finish/Coating : Tin-Plated
    • Base Material : Copper
    • Color Code : Red
    • Barrel Type : Brazed
    • Flammability Rating : UL94-V0
    • Maximum Operating Temperature (°F) : 221
    • Maximum Operating Temperature (°C) : 105
    • Maximum Wire Insulation Diameter (mm) : 3.8
    • Maximum Wire Insulation Diameter (In.) : 0.15
    • Overall Length (In.) : 0.97
    • Sub Brand : Pan-Term®
    • Overall Length (mm) : 24.6
    • Packaging Type : Bottle
    • Product Type : Pin Terminal
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Maximum Metric Conductor Size (mm²) : 1
    • Minimum Metric Conductor Size (mm²) : 0.5
