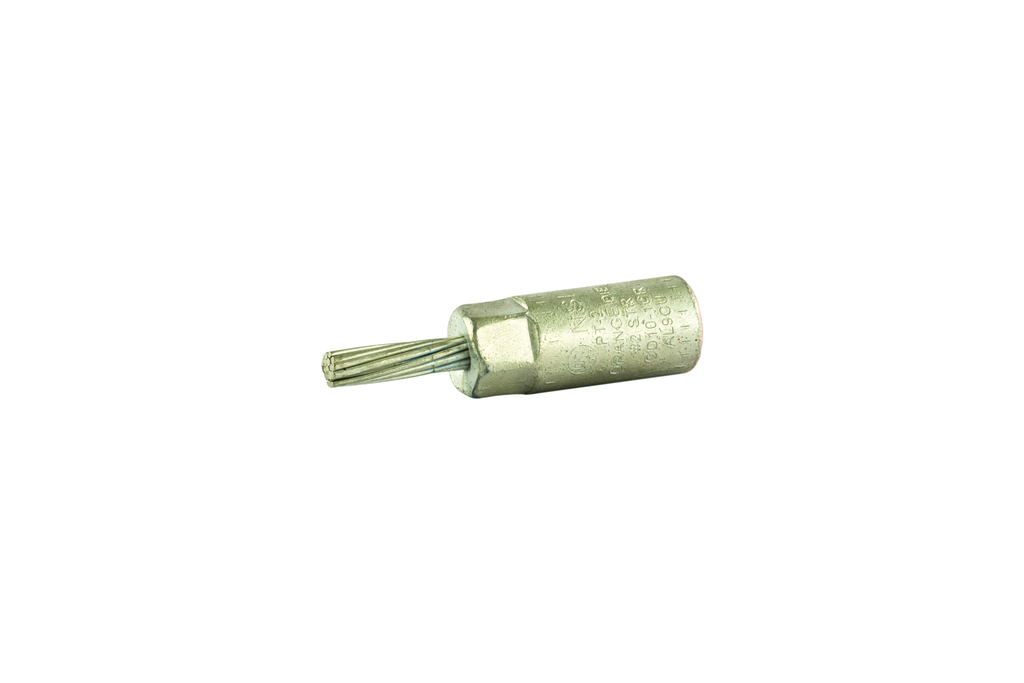

Stranded Bi-Metallic Pin Terminal 2 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

• Features
• Designed to facilitate termination of aluminum conductors
• Pin - Stranded copper, tin plated
• Supplied with EPDM insulating cover
• Connector bores are coated with oxide inhibitor
• Wire connector rated for 35kV max
• Certifications and Standards
• UL Listed
• UL 486A-486B

• Specifications
• Country of Origin : India
• Length : 2.446 in
• Width : 0.64 in
• Height : 0.64 in
• Pin Material : Copper
• Pin Size : 4 AWG
• Wire/Cable Class : Class B, Class C
• Die Color Code : Orange
• Field Application : Terminate
• FINISH : Tin Plated
• Future Plan : Rebrand as Polaris
• MATERIAL : Aluminum
• Max Temperature : 90 C (194 F)
• Pin Diameter : 0.23 IN
• Pin Length : 0.937 IN
• Product Assortment : Pin Terminals
• Product Series : PT
• Slotted Tang : No
• UL File # : E155027
• VOLTAGE RATING : 600V
• WARRANTY : 1 Year
• Type : Pin Terminals
• Barrel Peep Hole : No
• Conductor Rating : AL9CU
• Barrel Inside Diameter : 0.31 IN
• Barrel Outside Diameter : 0.64 IN
• Barrel Length : 1.53 IN
• Conductor Type : Aluminum
