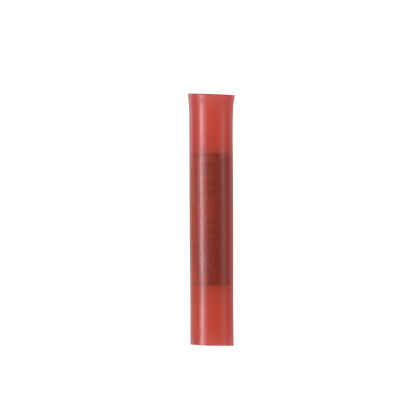

Pan-Term® BSN18-M Butt Splice, Red, Nylon, 18-22 AWG, PK1000

BUTT SPLICE #22-18

PANBSN18M BSN18-M 074983830015
0.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® BSN18-M Butt Splice, Red, Nylon, 18-22 AWG, PK1000-1
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.15 in, 29.2 mm
  • Type: Butt Splice
  • Width: 0.2 in, 5.1 mm
Panduit BSN18-M Nylon Insulated Butt Splice
QTY
  • Product Description
  • Specifications
Panduit BSN18-M Nylon Insulated Butt Splice
  • Specifications
    • Product Segment : IEI
    • Product Type : Butt Splice
    • Maximum Copper Conductor Size (AWG STR) : #18
    • Maximum Copper Conductor Size (AWG SOL) : #18
    • Minimum Copper Conductor Size (AWG SOL) : #22
    • Minimum Copper Conductor Size (AWG STR) : #22
    • Sub Brand : Pan-Term®
    • Maximum Metric Conductor Size (mm²) : 1
    • Minimum Metric Conductor Size (mm²) : 0.5
    • Copper Conductor Size (AWG) : #22 - #18
    • Barrel Type : Standard
    • Maximum Voltage (V) : 600
    • Maximum Voltage (kV) : 0.6
    • Base Material : Copper
    • Insulation Material : Nylon
    • Standards Met : BSN18-M
    • Finish/Coating : Tin-Plated
    • Color Code : Red
    • Overall Length (mm) : 29.2
    • Overall Length (In.) : 1.15
    • Overall Width (In.) : 0.2
    • Overall Width (mm) : 5.1
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 9/32
    • UL Temperature Rating (°F) : 221
    • UL Temperature Rating (°C) : 105
    • CSA Temperature Rating (°C) : 105
    • CSA Temperature Rating (°F) : 221
  • Packaging Details
    • UPC : 07498383001
    • GTIN Package : 00074983830015
    • Standard Package Volume Ft3 : 0.5261
    • Standard Package Weight Pounds : 3.1000
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 8.1
    • Std Package Length MM : 205.74
    • Std Package Width In : 4.35
    • Std Package Width MM : 110.49
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • GTIN Carton : 50074983830010
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983830015
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000
    • Pallet Quantity : 480,000
    • Pallet Weight : 1,488.0000
