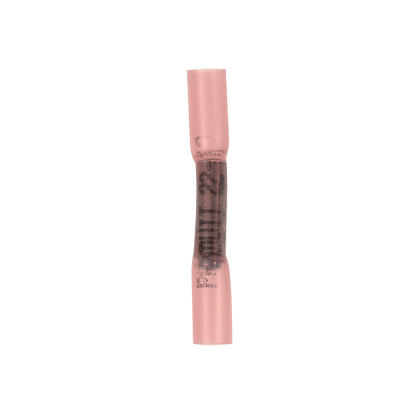

Pan-Term® BSH18-Q Butt Splice, Red, Heat Shrink, 18 AWG, PK25

BUTT SPLICE HS #22-18

PANBSH18Q BSH18-Q 074983818235
3.04 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® BSH18-Q Butt Splice, Red, Heat Shrink, 18 AWG, PK25-1
  • Country of Origin: USA
  • Material: Copper
  • Overall Length: 1.45 in, 36.8 mm
  • Type: Butt Splice
Panduit BSH18-Q Heat Shrink Insulated Butt Splice
QTY
  • Product Description
  • Specifications
Panduit BSH18-Q Heat Shrink Insulated Butt Splice
  • Packaging Details
    • UPC : 07498381823
    • GTIN Package : 00074983818235
    • Standard Package Volume Ft3 : 0.0067
    • Standard Package Weight Pounds : 0.1100
    • Std Package Height In : .75
    • Std Package Height MM : 19.05
    • Std Package Length In : 4.05
    • Std Package Length MM : 102.87
    • Std Package Width In : 3.9
    • Std Package Width MM : 99.06
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • GTIN Carton : 50074983818230
    • Standard Carton Volume Ft3 : 0.0337
    • Standard Carton Weight Pounds : 0.5500
    • Std Carton Height In : 3.45
    • Std Carton Height MM : 87.63
    • Std Carton Length In : 8.1
    • Std Carton Length MM : 205.74
    • Std Carton Width In : 4.5
    • Std Carton Width MM : 114.3
    • Std Ctn Qty : 125
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983818235
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 125
  • Specifications
    • Product Segment : IEI
    • Product Type : Butt Splice
    • Maximum Copper Conductor Size (AWG STR) : #18
    • Minimum Copper Conductor Size (AWG STR) : #22
    • Minimum Metric Conductor Size (mm²) : 0.5
    • Maximum Metric Conductor Size (mm²) : 1
    • Sub Brand : Pan-Term®
    • Copper Conductor Size (AWG) : #22 - #18
    • Barrel Type : Standard
    • Maximum Voltage (V) : 600
    • Maximum Voltage (kV) : 0.6
    • Base Material : Copper
    • Insulation Material : Heat Shrink
    • Insulation Type : Polyolefin
    • Standards Met : BSH18-Q
    • Finish/Coating : Tin-Plated
    • Color Code : Red
    • Overall Length (mm) : 36.8
    • Overall Length (In.) : 1.45
    • Wire Strip Length (In.) : 5/16
    • Wire Strip Length (mm) : 7.9
    • UL Temperature Rating (°F) : 257
    • UL Temperature Rating (°C) : 125
    • CSA Temperature Rating (°F) : 257
    • CSA Temperature Rating (°C) : 125
