SQUARE D

Terminal block, Linergy, box connector, natural colored block, 180A, 600V

TERMINAL BLOCK 600V 170AMP NEM

SQD9080GD6 9080GD6 785901155027
10.95 / EACH
http://schema.org/OutOfStock

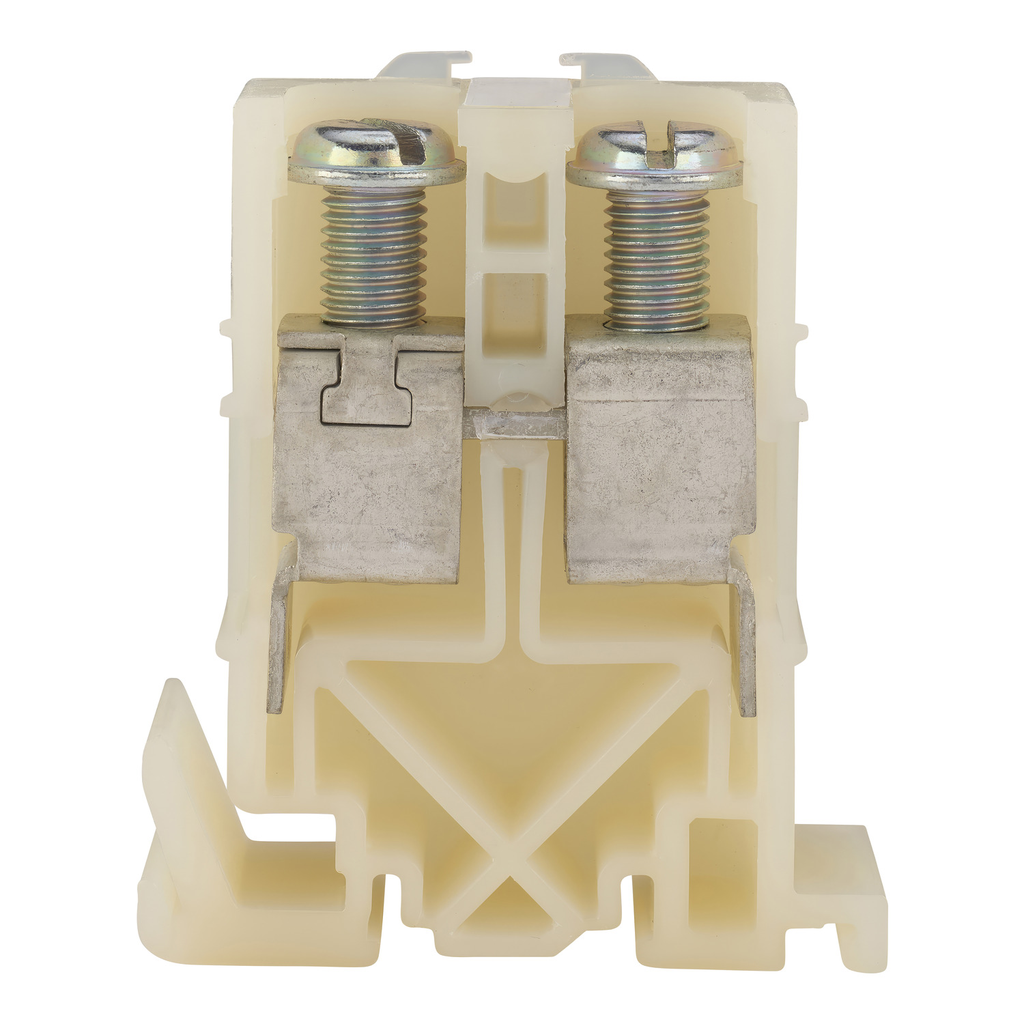

Mayer-DDS-Terminal block, Linergy, box connector, natural colored block, 180A, 600V-2
  • Certifications: CE, CSA File 62144 Class 6228 01, UL Recognized E60616 CCN XCFR2
  • Depth: 0.7 in
  • Height: 2.71 in
  • Line Rated Current: 170-170 A, 180-180 A
  • Warranty Length: 18 mth
  • Width: 2.12 in
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #12 through 1/0 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, 1 to 5 #8 AWG, 1 to 6 #10 AWG or 1 to 7 #12 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 180 Amps and CSA certified for up to 170 Amp. Both UL and CSA have the block rated at up to 600 VAC or VDC.
QTY
  • Product Description
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #12 through 1/0 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, 1 to 5 #8 AWG, 1 to 6 #10 AWG or 1 to 7 #12 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 180 Amps and CSA certified for up to 170 Amp. Both UL and CSA have the block rated at up to 600 VAC or VDC.
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • Number Of Terminal Blocks : 17 per foot
    • Product Certifications : UL recognized E60616 CCN XCFR2 || CE || CSA file 62144 class 6228 01
    • Ambient Air Temperature For Operation : -40-257 °F
    • Height : 2.71 in
    • Connections - Terminals : lug tin plated steel 45-50 lbf.in : AWG 12...AWG 1/0 copper)
    • Mounting Support : 35 mm DIN rail || 9080GH track
    • Electrical Connection : tin plated steel box lugs
    • Line Rated Current : 180-180 A UL || 170-170 A CSA
    • Awg Gauge : AWG 12...AWG 1/0 copper
    • Width : 2.12 in
    • Depth : 0.7 in
    • Product Compatibility : GD6B
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Specifications
    • Color : natural
    • Range Of Product : 9080G
    • Localisation On Device : standard
    • Quantity Per Set : set of 10
    • Product Or Component Type : terminal block
  • Contractual warranty
    • Warranty : 18 months
