Mini-Com® Blue SC Duplex, Singlemode Duplex, Blue Module

SC DPLX BU ADPTRBU MOD ASSYZIR

PANCMDBUSCZBU CMDBUSCZBU 074983845200
25.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini-Com® Blue SC Duplex, Singlemode Duplex, Blue Module-1
  • Body Type: Duplex
  • Connection Type: SC
  • Country of Origin: USA
  • Material: Zicornia Ceramic
  • Max. Operating Temperature: 140 °F, 60 °C
  • Min. Operating Temperature: 0 °C, 32 °F
  • Overall Length: 2.21 in, 56.1 mm
  • Type: SC Adapter Module

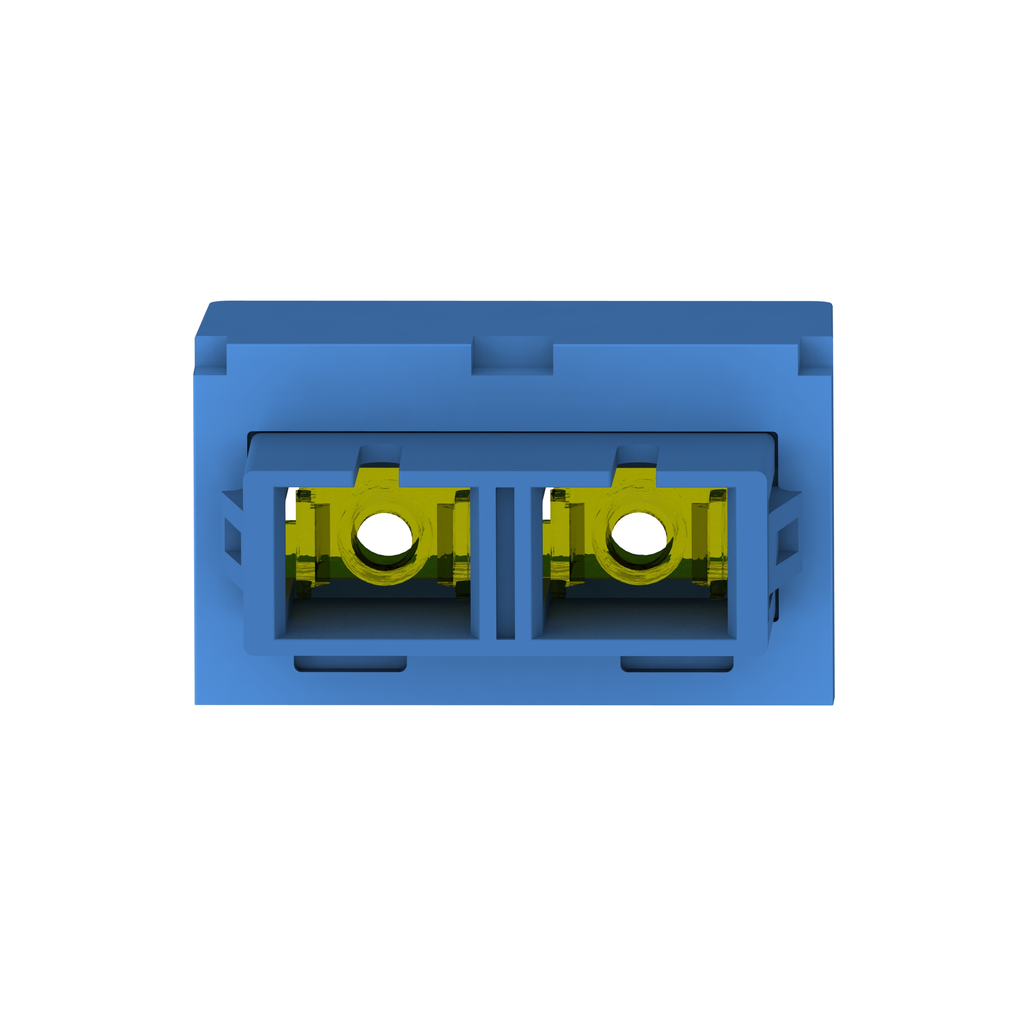

The Mini-Com® Singlemode Duplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two SC duplex connectors in two Mini-Com module spaces and features a blue fiber adapter along with a blue module and has zirconia split sleeves.
QTY
  • Product Description
  • Specifications
The Mini-Com® Singlemode Duplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two SC duplex connectors in two Mini-Com module spaces and features a blue fiber adapter along with a blue module and has zirconia split sleeves.
  • Specifications
    • Product Segment : EDI-DC
    • Sub Brand : Mini-Com®
    • Body Style : Duplex
    • Fiber Type : OS1/OS2
    • Material : Zirconia Ceramic
    • Overall Length (In.) : 2.21
    • Overall Length (mm) : 56.1
    • Maximum Operating Temperature (°F) : 140
    • Maximum Operating Temperature (°C) : 60
    • Minimum Operating Temperature (°F) : 32
    • Minimum Operating Temperature (°C) : 0
    • Maximum Installation Temperature (°C) : 60
    • Maximum Installation Temperature (°F) : 140
    • Minimum Installation Temperature (°C) : 0
    • Minimum Installation Temperature (°F) : 32
    • Standards Met : TIA/EIA-604 FOCIS-3 compliant, Exceed TIA/EIA-568-B.3. RoHS compliant
    • Product Type : SC Adapter Module
    • Color : Blue
    • Application : Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution.
    • Module Color : Blue
    • Connection Type : SC
  • Packaging Details
    • UPC : 07498384520
    • GTIN Package : 00074983845200
    • Standard Package Volume Ft3 : 0.0038
    • Standard Package Weight Pounds : 0.0350
    • Std Package Height In : .85
    • Std Package Height MM : 21.59
    • Std Package Length In : 3.8
    • Std Package Length MM : 96.52
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983845205
    • Standard Carton Volume Ft3 : 0.0378
    • Standard Carton Weight Pounds : 0.3500
    • Std Carton Height In : 4.3
    • Std Carton Height MM : 109.22
    • Std Carton Length In : 4.5
    • Std Carton Length MM : 114.3
    • Std Carton Width In : 4.35
    • Std Carton Width MM : 110.49
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983845200
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 10
