network switch, Modicon Networking, premium unmanaged, 8 ports for copper

ConneXium Premium Unmanaged Sw

SQDTCSESPU083FN0 3606481337375
257.35 / EA
http://schema.org/OutOfStock

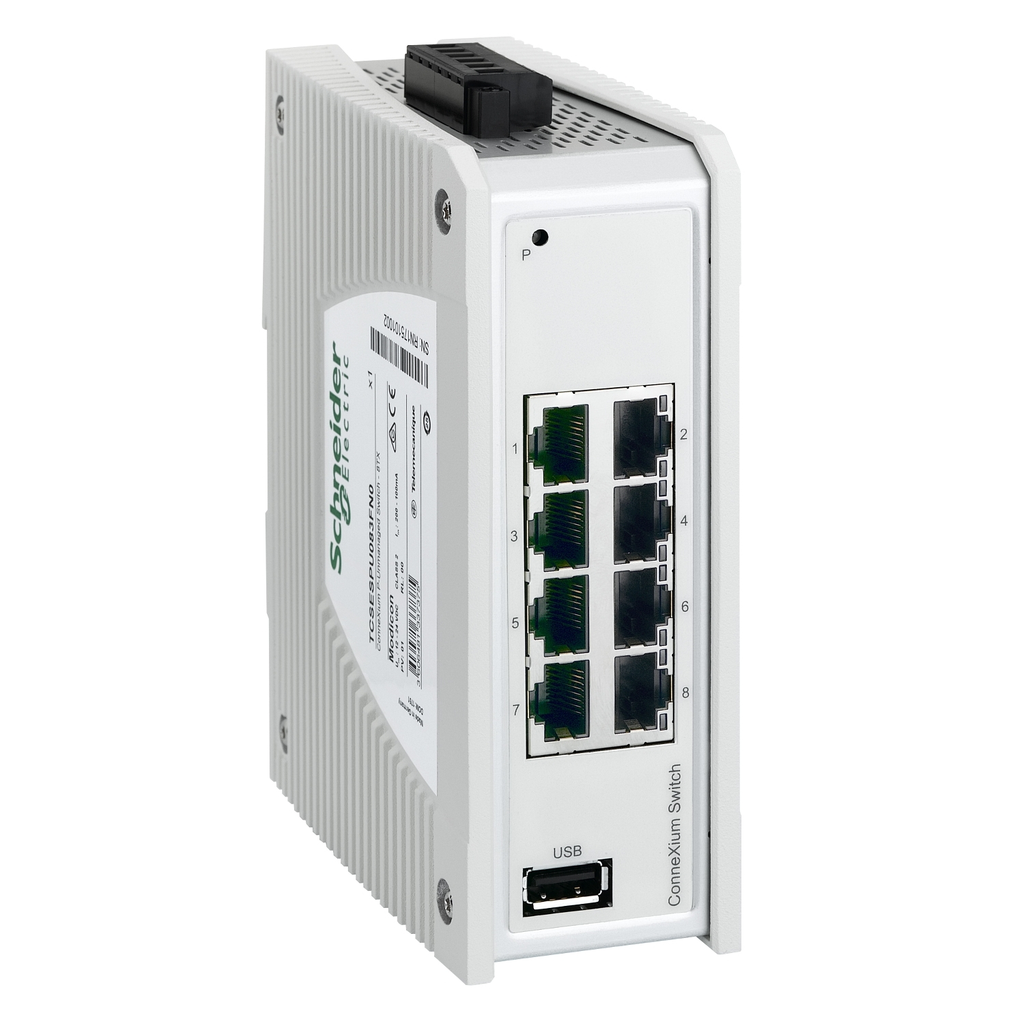

Mayer-DDS-network switch, Modicon Networking, premium unmanaged, 8 ports for copper-1
  • Certifications: CE, RCM, UL
  • Depth: 117 mm
  • Height: 135 mm
  • Net Weight: 0.440 kg
  • Standard: EN/IEC 61131, UL 61010
  • Warranty Length: 18 mth
  • Width: 50 mm
QTY
  • Specifications
  • Environment
    • Ambient Air Temperature For Operation : -40-+70 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Standards : UL 61010 || EN/IEC 61131
    • Relative Humidity : 10-95 % non-condensing
    • Product Certifications : CE || UL || RCM
    • Ip Degree Of Protection : IP40
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Not applicable, out of EU RoHS legal scope
  • Complementary
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • [Us] Rated Supply Voltage : 12...24 V
    • Height : 135 mm
    • Integrated Connection Type : shielded RJ45 copper cable
    • Ethernet Service : multicast filtering || data stream control
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper cable
    • Mounting Support : 35 mm symmetrical DIN rail
    • Ethernet Cabling System : TF switches
    • Supply Voltage Limits : 9.6-32 V DC SELV
    • Local Signalling : for P1 P2 power supplies 1 dual colour LED (green/yellow) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 dual colour LED (green/yellow)
    • Power Consumption In W : 2.6 W
    • Communication Service : Quality of Service (QoS)
    • Marking : CE || UL || RCM
    • Width : 50 mm
    • Depth : 117 mm
    • Net Weight : 0.440 kg
    • Electrical Connection : removable connector 6 ways power supply
  • Specifications
    • Communication Port Protocol : Ethernet TCP/IP
    • Maximum Number Of Switches In Cascade : unlimited
    • Range Of Product : ConneXium
    • Port Ethernet : 10/100BASE-TX - 8 copper cable
    • Product Or Component Type : Ethernet TCP/IP unmanaged switch
    • Concept : Transparent Ready
