network switch, Modicon Networking, lite managed, 4 ports for copper

CONNEXIUM LITE MANAGED SWITCH

SQDTCSESL043F23F0 TCSESL043F23F0 3606480762277
437.99 / EA
http://schema.org/OutOfStock

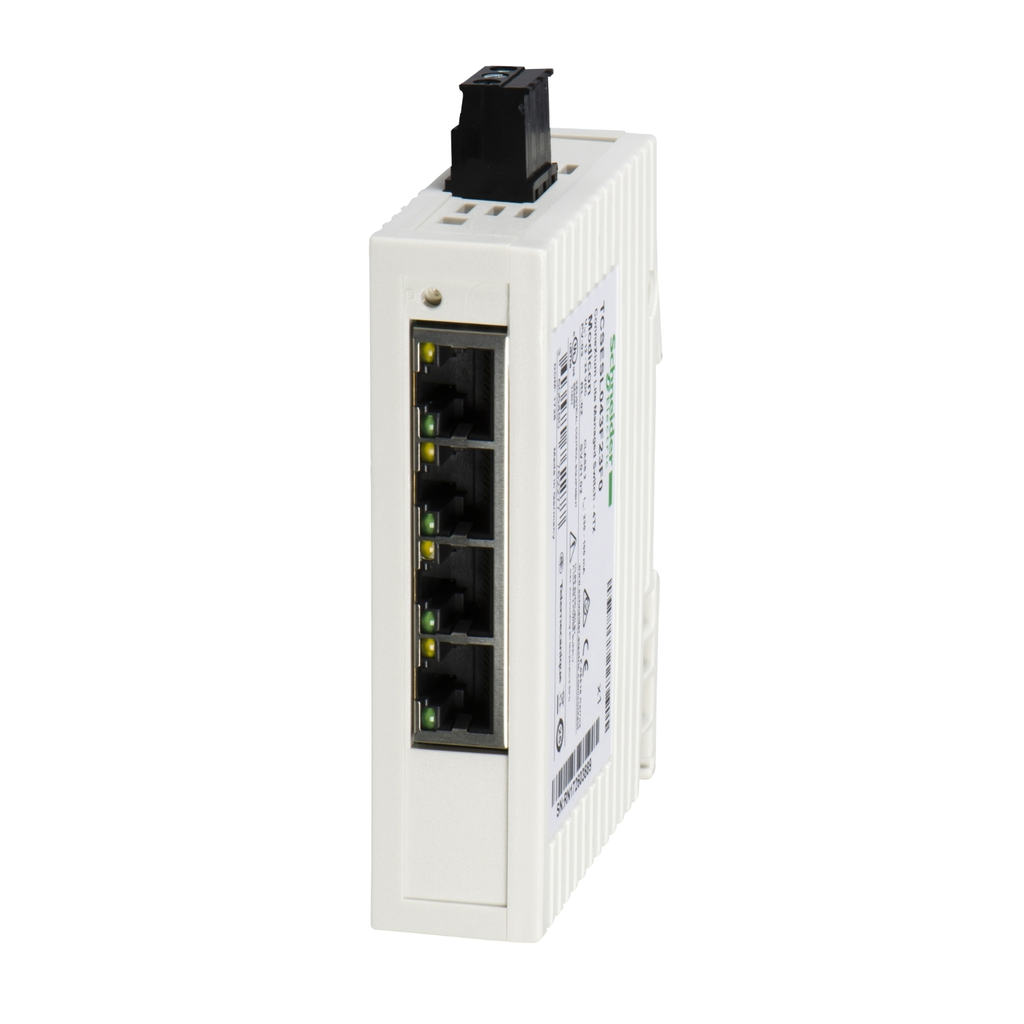

Mayer-DDS-network switch, Modicon Networking, lite managed, 4 ports for copper-1
  • Certifications: CE, RCM, UL
  • Depth: 79 mm
  • Height: 114 mm
  • Net Weight: 0.103 kg
  • Standard: UL 61010
  • Warranty Length: 18 mth
  • Width: 25 mm
QTY
  • Specifications
  • Environment
    • Ambient Air Temperature For Operation : 0-60 °C
    • Standards : UL 61010
    • Product Certifications : CE || UL || RCM
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Relative Humidity : 5-95 % non-condensing
    • Ip Degree Of Protection : IP30
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100304EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1003004EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Maximum Cable Distance Between Devices : 100 m copper cable
    • [Us] Rated Supply Voltage : 12...24 V
    • Height : 114 mm
    • Integrated Connection Type : shielded RJ45 copper cable
    • Transmission Support Medium : twisted shielded pairs cable CAT 5E copper cable
    • Mounting Support : 35 mm symmetrical DIN rail
    • Power Consumption In W : 2.35 W
    • Communication Service : TFTP || port monitoring
    • Marking : CE || cULus || RCM
    • Redundancy : RSTP
    • Net Weight : 0.103 kg
    • Electrical Connection : removable connector 3 ways power supply
    • Maximum Number Of Switches In A Ring : 50
    • Ethernet Service : configuration via web server || multicast filtering || syslog || SNMP-Traps
    • Ethernet Cabling System : TF switches
    • Supply Voltage Limits : 9.6-32 V DC SELV
    • Local Signalling : for power supply 1 LED (green) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 LED per channel (green)
    • Diagnostics Run Time : log file
    • Width : 25 mm
    • Depth : 79 mm
  • Specifications
    • Maximum Number Of Switches In Cascade : unlimited
    • Range Of Product : ConneXium
    • Port Ethernet : 10/100BASE-TX - 4 copper cable
    • Product Or Component Type : Ethernet TCP/IP managed switch
    • Communication Port Protocol : Ethernet TCP/IP || HTTP || HTTPS || SNMP || LLDP
    • Cybersecurity : enable/disable communication ports
    • Concept : Transparent Ready
