SQUARE D

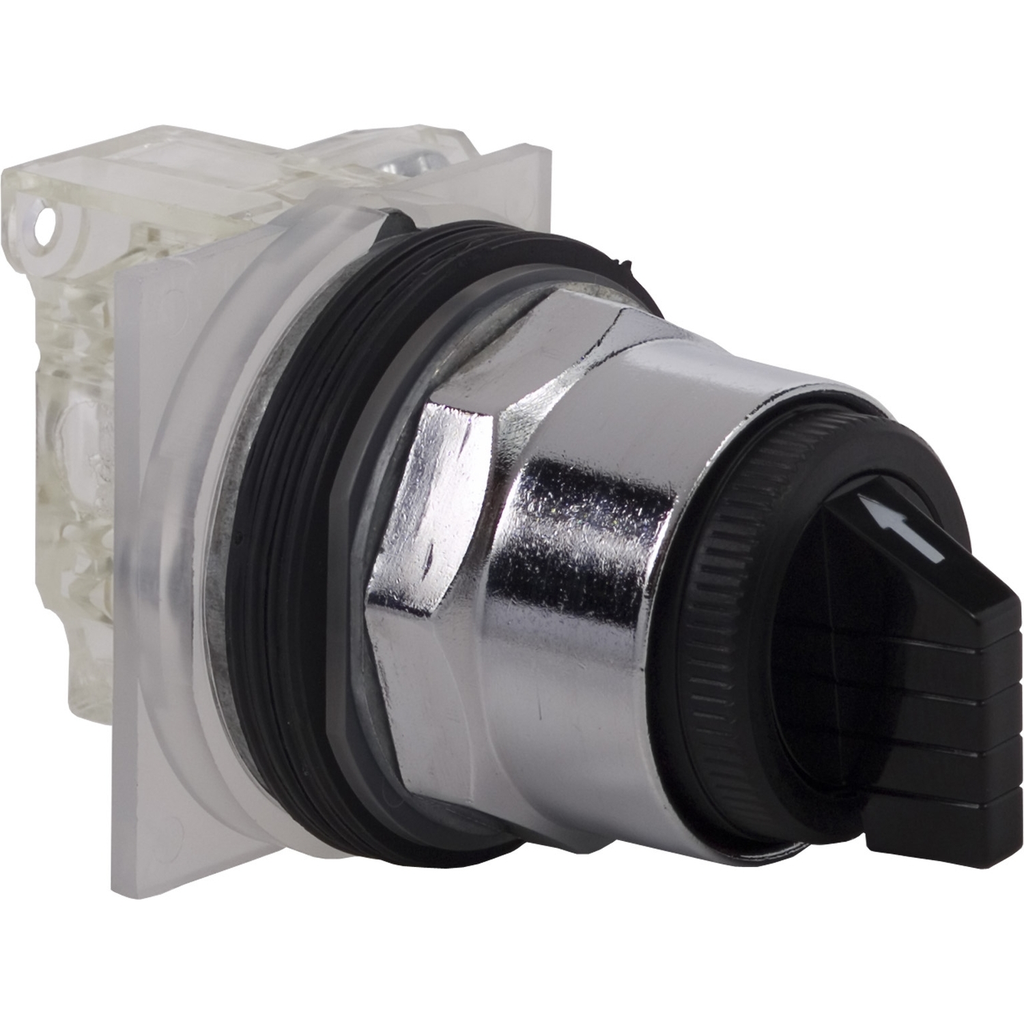

Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, return both sides to center, 1 change over

SELECTOR SWITCH 600VAC 10A 30M

SQD9001KS53BH1 9001KS53BH1 785901035237
144.39 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, return both sides to center, 1 change over-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR24590 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
QTY
  • Product Description
  • Specifications
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
  • Environment
    • Product Certifications : CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Connections - Terminals : screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Contacts Type And Composition : 1 C/O
    • Bezel Material : metal
    • Cam Profile : 3
    • Operator Position Information : 3 positions
    • Mounting Diameter : 30 mm
    • Operator Profile : standard handle
    • Type Of Operator : spring return
    • Return : both sides to centre
    • Cap/Operator Or Lens Colour : black
    • Size : 30 mm
    • Device Presentation : complete product
  • Specifications
    • Range Of Product : Harmony 9001K
    • Operator Profile : black standard knob
    • Type Of Operator : spring return
    • Product Or Component Type : selector switch
    • Device Short Name : K
